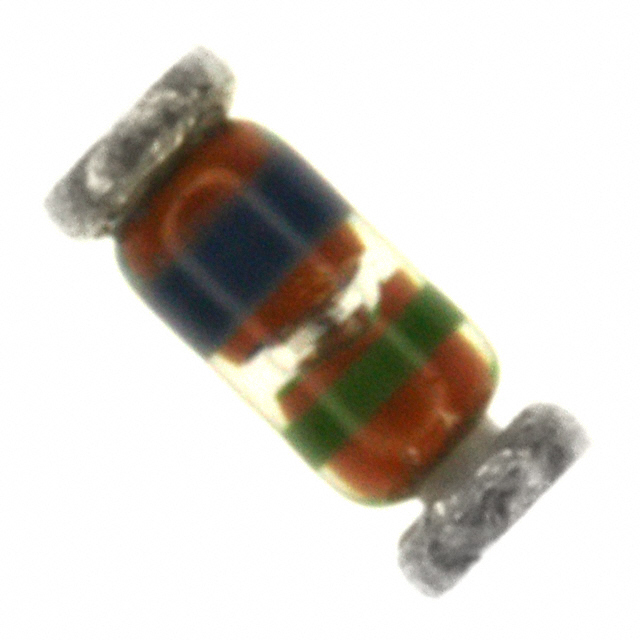

FLZ5V6B
DIODE ZENER 5.6V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ5V6B is a Zener diode designed for precise voltage regulation. Featuring a nominal Zener voltage (Vz) of 5.6 V with a tight tolerance of ±3%, this component is ideal for applications requiring stable reference voltages. It offers a maximum power dissipation of 500 mW and a reverse leakage current of 750 nA at 2.5 V. The impedance at the Zener test current (Zzt) is a maximum of 10.5 Ohms.
This diode is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, suitable for automated assembly processes. The operating temperature range spans from -65°C to 175°C, ensuring reliability in diverse environmental conditions. The FLZ5V6B is commonly employed in power supply circuits, voltage clamping, and signal conditioning within the industrial, automotive, and consumer electronics sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Impedance (Max) (Zzt) | 10.5 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 750 nA @ 2.5 V |
