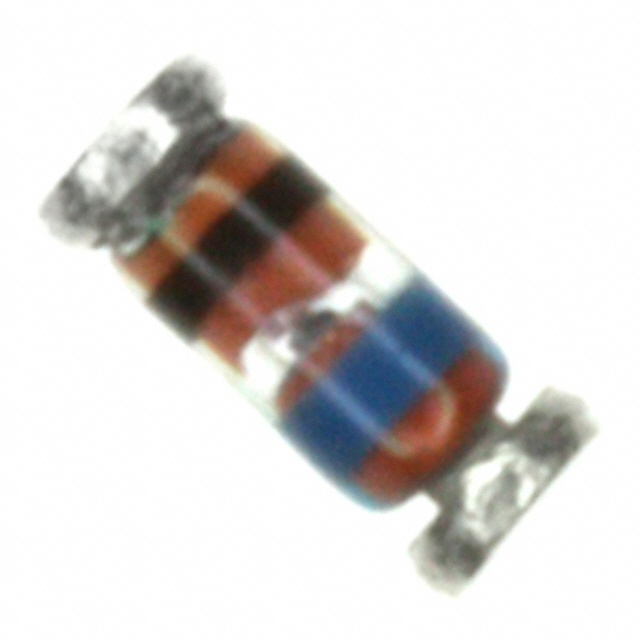

FLZ5V1C
DIODE ZENER 5.2V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi's FLZ5V1C is a Zener diode offering a nominal voltage of 5.2V with a tight tolerance of ±3%. This component is rated for a maximum power dissipation of 500 mW and features a low reverse leakage current of 190 nA at 1.5V. The impedance at the Zener breakdown voltage (Zzt) is a maximum of 17 Ohms. Designed for surface mounting, the FLZ5V1C utilizes the SOD-80 (DO-213AC, MINI-MELF) package, supplied in tape and reel. Its operating temperature range spans from -65°C to 175°C, making it suitable for demanding applications in automotive and industrial sectors. The forward voltage (Vf) is a maximum of 1.2V at 200 mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 5.2 V |
| Impedance (Max) (Zzt) | 17 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 190 nA @ 1.5 V |
