FLZ4V7B
DIODE ZENER 4.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

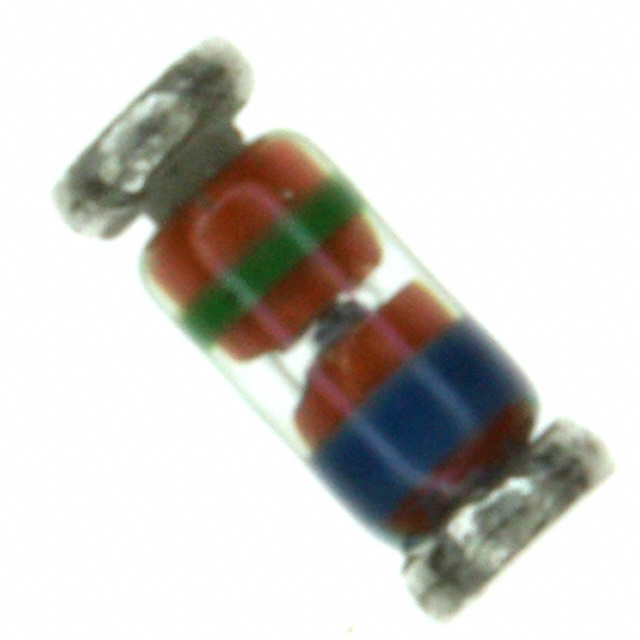

The onsemi FLZ4V7B is a 4.7V Zener diode with a maximum power dissipation of 500mW. Featuring a ±3% voltage tolerance, this component is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, supplied on tape and reel. Its low reverse leakage current of 190 nA at 1V and a maximum Zener impedance of 21 Ohms make it suitable for precise voltage regulation applications. The operating temperature range is from -65°C to 175°C. This device finds application in automotive, industrial, and consumer electronics sectors where stable voltage references are critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 4.7 V |
| Impedance (Max) (Zzt) | 21 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 190 nA @ 1 V |
