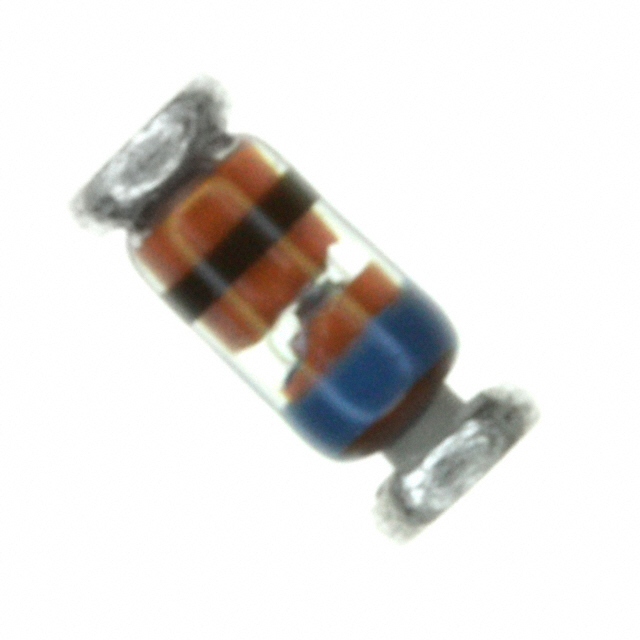

FLZ4V3C
DIODE ZENER 4.4V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ4V3C is a Zener diode with a nominal breakdown voltage of 4.4V and a power rating of 500mW. This component features a ±3% tolerance for precise voltage regulation. The FLZ4V3C is housed in a miniature MELF package (DO-213AC, SOD-80), suitable for surface mounting in applications requiring compact designs. Its reverse leakage current is rated at 470 nA at 1V, with a maximum Zener impedance of 32 Ohms. The operating temperature range spans from -65°C to 175°C, making it robust for various environmental conditions. This device finds application in power management circuits, voltage regulation, and transient suppression across the automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 4.4 V |
| Impedance (Max) (Zzt) | 32 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 470 nA @ 1 V |
