FLZ4V3B
DIODE ZENER 4.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

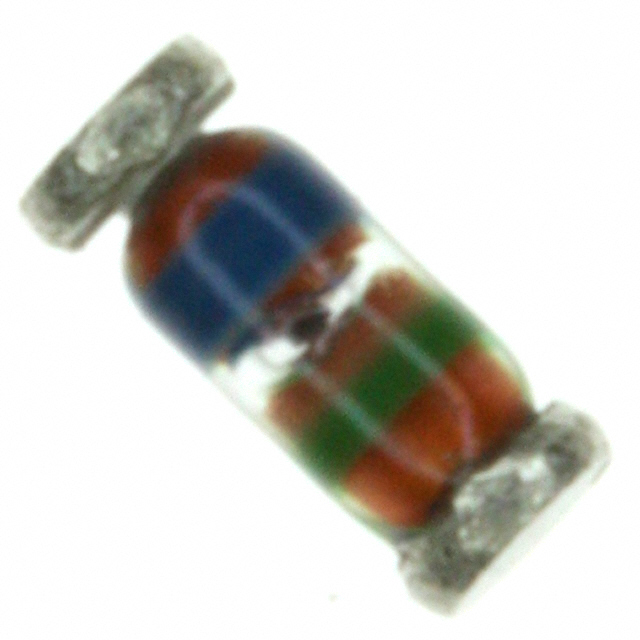

onsemi FLZ4V3B is a Zener diode with a nominal breakdown voltage of 4.3V and a power dissipation of 500mW. This device features a tight tolerance of ±3% and a low reverse leakage of 470 nA @ 1V. The impedance at the test current is a maximum of 32 Ohms. The FLZ4V3B is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface mount package, suitable for automated assembly. Its operating temperature range spans from -65°C to 175°C, ensuring robust performance in demanding environments. This component is commonly utilized in voltage regulation and transient suppression applications across various industries, including automotive and industrial electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 4.3 V |
| Impedance (Max) (Zzt) | 32 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 470 nA @ 1 V |
