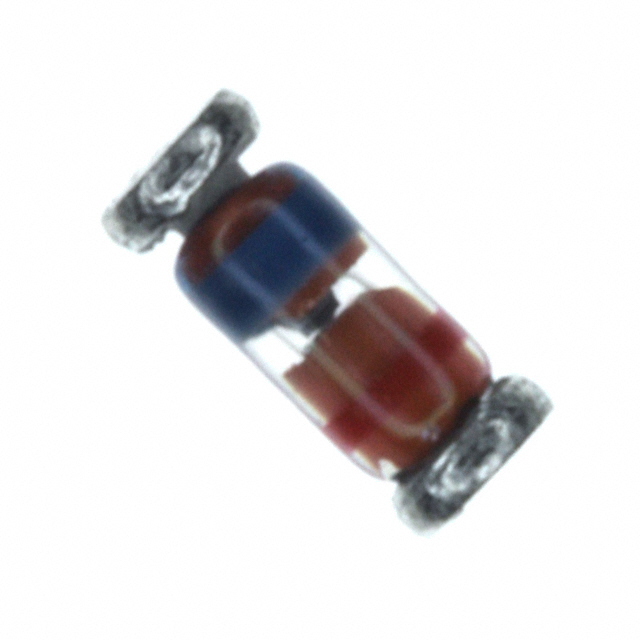

FLZ4V3A
DIODE ZENER 4.2V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ4V3A is a Zener diode with a nominal Zener voltage of 4.2V and a power dissipation rating of 500mW. This component features a tight tolerance of ±3% and a low reverse leakage current of 470 nA at 1V. The maximum Zener impedance (Zzt) is 32 Ohms. Designed for surface mounting, it is packaged in the compact SOD-80 (DO-213AC, MINI-MELF) case, supplied on tape and reel. The forward voltage (Vf) at 200mA is a maximum of 1.2V. Operating across a wide temperature range of -65°C to 175°C, the FLZ4V3A is suitable for applications in power supply regulation and voltage clamping within the automotive and industrial sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 4.2 V |
| Impedance (Max) (Zzt) | 32 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 470 nA @ 1 V |
