FLZ3V9B
DIODE ZENER 4V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

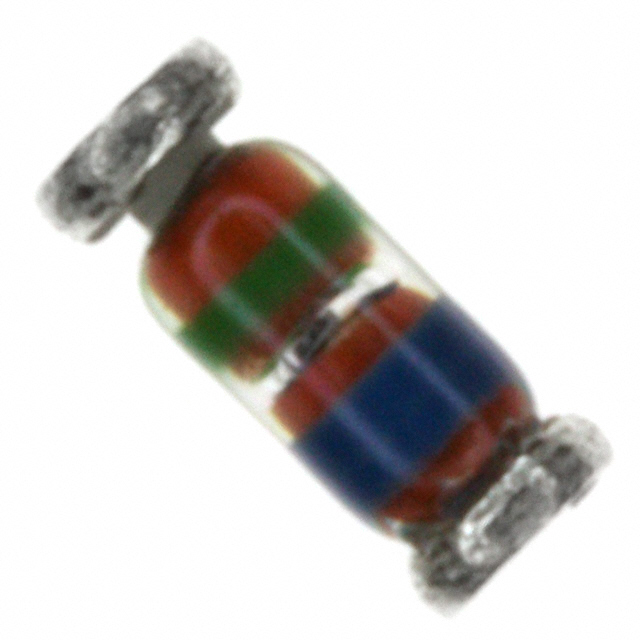

The onsemi FLZ3V9B is a 4V Zener diode with a 500mW power rating and a ±3% tolerance. Packaged in a SOD-80 (DO-213AC, MINI-MELF) surface-mount configuration, this component is supplied on tape and reel. It exhibits a reverse leakage of 1.4 µA at 1V and a maximum Zener impedance (Zzt) of 40 Ohms. The forward voltage (Vf) is 1.2V at 200mA. Operating temperature range is -65°C to 175°C. This component is suitable for voltage regulation and transient suppression applications across various industries, including automotive and industrial electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 4 V |
| Impedance (Max) (Zzt) | 40 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 1.4 µA @ 1 V |
