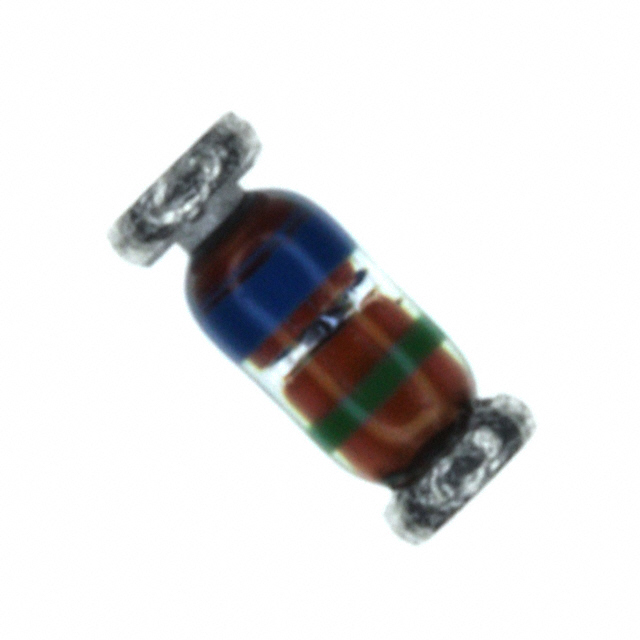

FLZ3V6B
DIODE ZENER 3.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi Zener Diode FLZ3V6B, a 3.7V, 500mW component with a ±3% tolerance, is available in a compact SOD-80 (DO-213AC, MINI-MELF) package supplied on tape and reel. This device exhibits a reverse leakage of 2.8 µA at 1V and a maximum Zener impedance (Zzt) of 48 Ohms. The forward voltage (Vf) is a maximum of 1.2V at 200mA. Operating across a wide temperature range from -65°C to 175°C, the FLZ3V6B finds application in voltage regulation and transient suppression circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 3.7 V |
| Impedance (Max) (Zzt) | 48 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 2.8 µA @ 1 V |
