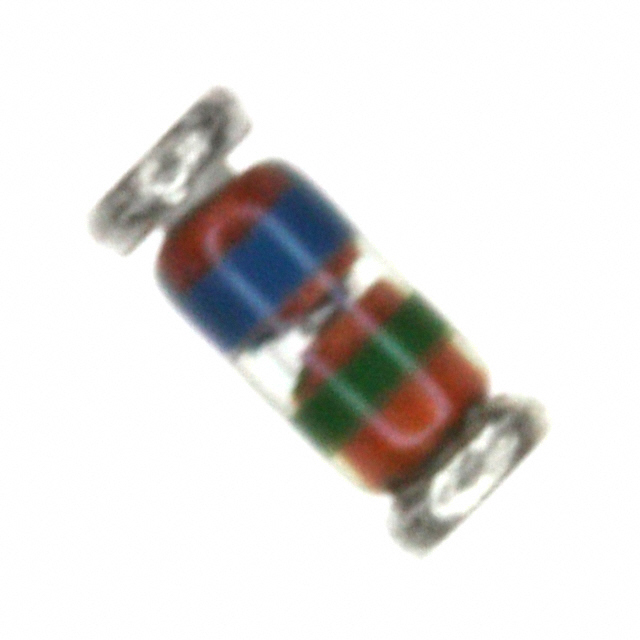

FLZ3V3B
DIODE ZENER 3.4V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ3V3B is a Zener diode featuring a nominal breakdown voltage of 3.4V with a tight tolerance of ±3%. This component is rated for a maximum power dissipation of 500 mW and exhibits a reverse leakage current of 14 µA at 1V. The Zener impedance (Zzt) is specified at a maximum of 35 Ohms. The FLZ3V3B is supplied in a SOD-80 (DO-213AC, MINI-MELF) surface mount package, ideal for space-constrained applications. Its operating temperature range spans from -65°C to 175°C. This device is commonly employed in power management, voltage regulation, and signal clamping circuits across various industries including automotive, industrial, and consumer electronics. The forward voltage (Vf) is a maximum of 1.2V at 200mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 3.4 V |
| Impedance (Max) (Zzt) | 35 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 14 µA @ 1 V |
