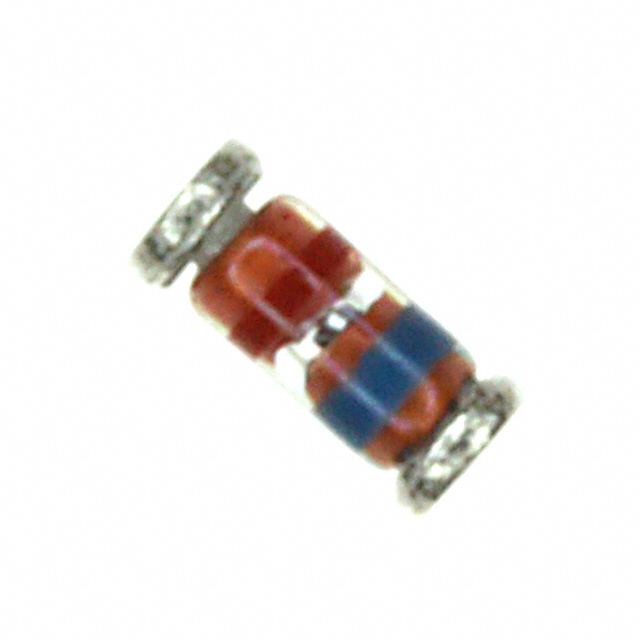

FLZ3V3A
DIODE ZENER 3.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ3V3A is a Zener Diode with a nominal voltage (Vz) of 3.3V and a tolerance of ±3%. This component features a maximum power dissipation (Power - Max) of 500 mW and a reverse leakage current (Current - Reverse Leakage @ Vr) of 14 µA @ 1 V. The Zener impedance (Max) (Zzt) is 35 Ohms. Housed in a SOD-80 (DO-213AC, MINI-MELF) surface mount package, it operates across a temperature range of -65°C to 175°C. The forward voltage (Vf) (Max) @ If is 1.2 V @ 200 mA. This device is commonly utilized in industrial and consumer electronics applications requiring precise voltage regulation. The FLZ3V3A is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 3.3 V |
| Impedance (Max) (Zzt) | 35 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 14 µA @ 1 V |
