FLZ39VC
DIODE ZENER 36.9V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

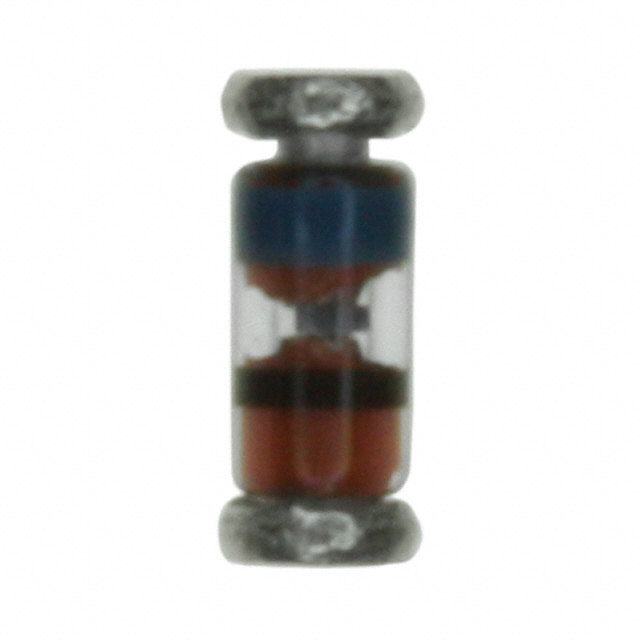

The onsemi FLZ39VC is a 500 mW Zener diode with a nominal breakdown voltage of 36.9 V and a tight tolerance of ±3%. This component is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, suitable for demanding applications. It exhibits a maximum forward voltage of 1.2 V at 200 mA and a low reverse leakage current of 133 nA at 30 V, with a Zener impedance (Zzt) of 72 Ohms. Operating across a wide temperature range of -65°C to 175°C, the FLZ39VC is ideal for voltage regulation and transient suppression in industrial, automotive, and consumer electronics. This device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 36.9 V |
| Impedance (Max) (Zzt) | 72 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 30 V |
