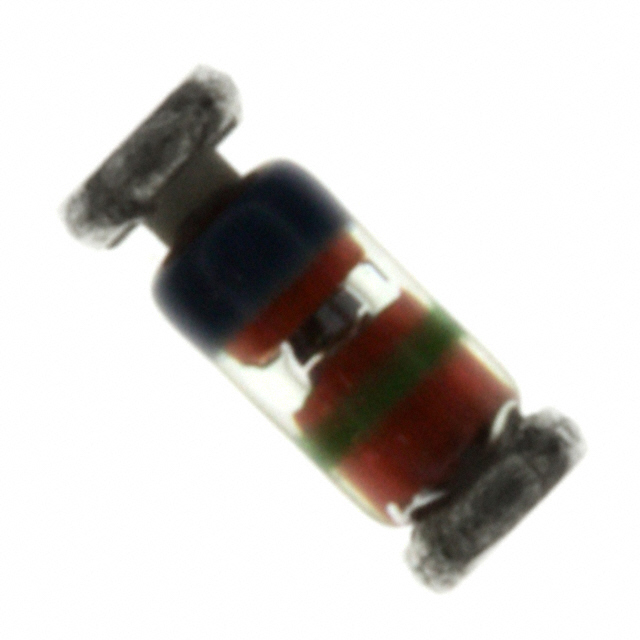

FLZ39VB
DIODE ZENER 36.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ39VB is a 500 mW Zener diode designed for precision voltage regulation. Featuring a nominal Zener voltage (Vz) of 36.3V with a tight tolerance of ±3%, this component is suitable for applications requiring stable reference voltages. Its low reverse leakage current of 133 nA at 30V and a maximum impedance (Zzt) of 72 Ohms at its rated voltage ensure reliable performance. The device is packaged in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, ideal for space-constrained designs. Operating across a wide temperature range of -65°C to 175°C, the FLZ39VB finds application in industrial control, power management, and automotive electronics where robust voltage stabilization is critical. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 36.3 V |
| Impedance (Max) (Zzt) | 72 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 30 V |
