FLZ39VA
DIODE ZENER 35.6V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

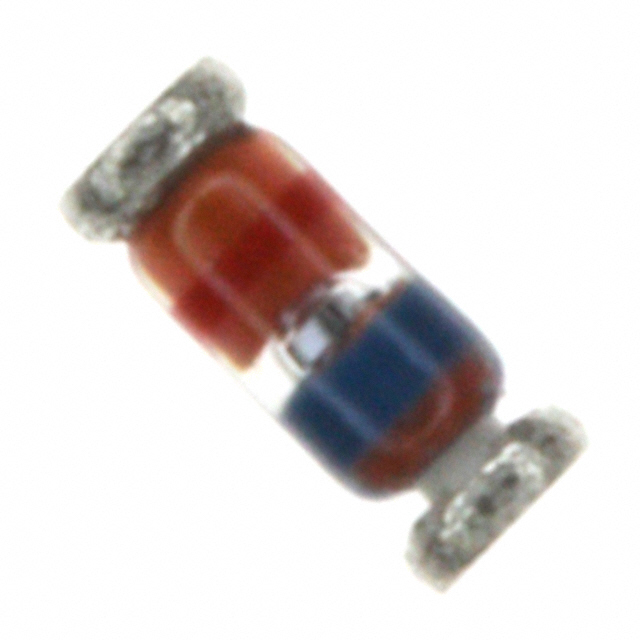

The onsemi FLZ39VA is a 35.6V Zener diode with a power dissipation of 500 mW. This component features a ±3% voltage tolerance and a low reverse leakage current of 133 nA at 30V. Its maximum Zener impedance (Zzt) is 72 Ohms. Designed for demanding applications, it is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, supplied on tape and reel. The operating temperature range is -65°C to 175°C. This device is commonly found in voltage regulation and transient suppression circuits across various industries including automotive, industrial control, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 35.6 V |
| Impedance (Max) (Zzt) | 72 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 30 V |
