FLZ36VC
DIODE ZENER 34.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

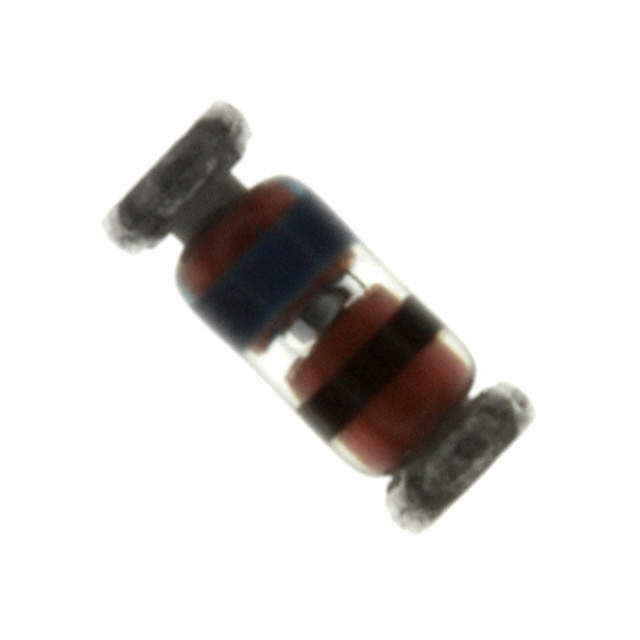

onsemi FLZ36VC is a 500 mW Zener diode featuring a nominal breakdown voltage of 34.3 V with a tight ±3% tolerance. This component, housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, offers a low reverse leakage of 133 nA at 27 V and a maximum Zener impedance of 63 Ohms. The FLZ36VC operates across a wide temperature range of -65°C to 175°C, making it suitable for demanding industrial and consumer electronics applications. It also exhibits a forward voltage of 1.2 V at 200 mA. Supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 34.3 V |
| Impedance (Max) (Zzt) | 63 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 27 V |
