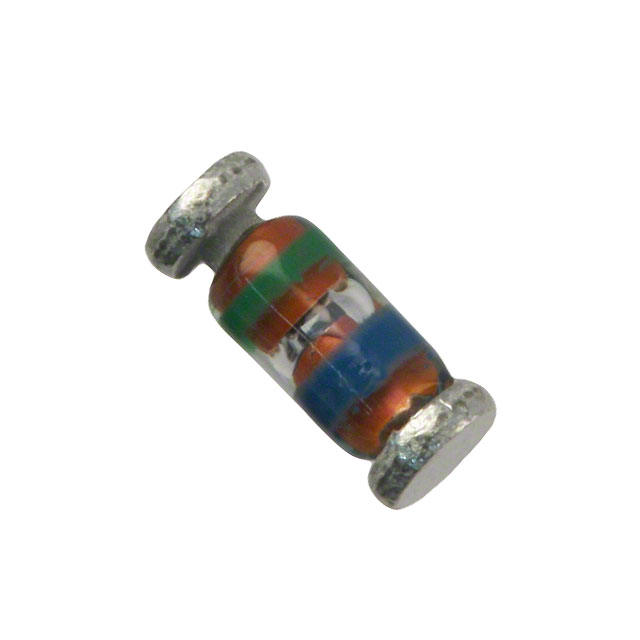

FLZ36VB
DIODE ZENER 33.6V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ36VB is a Zener diode offering a nominal breakdown voltage of 33.6V with a ±3% tolerance. This component features a maximum power dissipation of 500 mW and is packaged in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount configuration. It exhibits a reverse leakage current of 133 nA at 27V and a typical Zener impedance of 63 Ohms. The forward voltage drop is specified at a maximum of 1.2V at 200 mA. Operating across a wide temperature range of -65°C to 175°C, this device is suitable for voltage regulation and stabilization applications in the automotive and industrial sectors. It is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 33.6 V |
| Impedance (Max) (Zzt) | 63 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 27 V |
