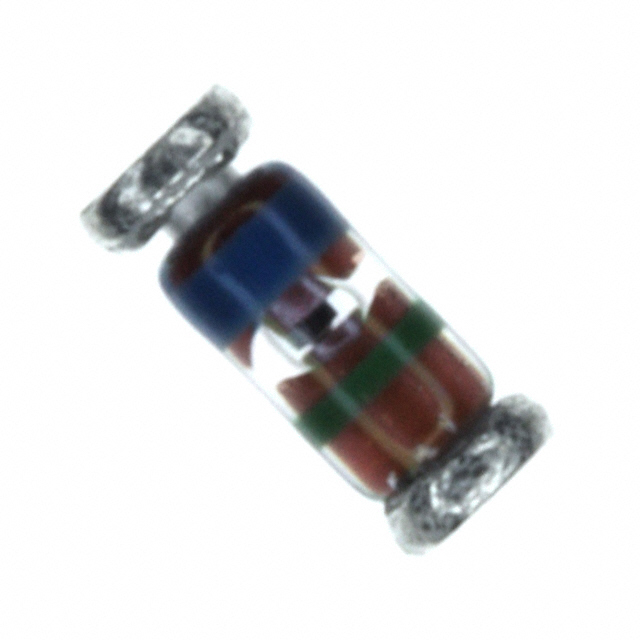

FLZ2V7B
DIODE ZENER 2.8V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ2V7B is a Zener diode with a nominal breakdown voltage of 2.8 V and a power rating of 500 mW. This component features a ±4% tolerance and a maximum reverse leakage current of 70 µA at 1 V. The impedance at the Zener test current (Izt) is 35 Ohms. Designed for surface mounting, it is housed in a DO-213AC (MINI-MELF, SOD-80) package. Operating temperature range is from -65°C to 175°C. This device is suitable for voltage regulation and stabilization applications across various industries including automotive, industrial, and consumer electronics. The part is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±4% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 2.8 V |
| Impedance (Max) (Zzt) | 35 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 70 µA @ 1 V |
