FLZ2V7A
DIODE ZENER 2.6V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

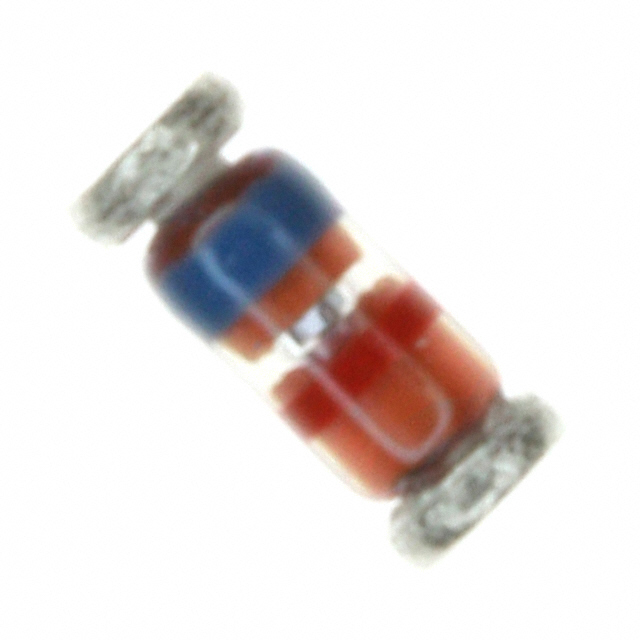

onsemi FLZ2V7A is a 2.6V Zener diode with a power dissipation of 500mW. This component features a tight tolerance of ±4% and a low reverse leakage current of 70 µA at 1V. With a maximum Zener impedance (Zzt) of 35 Ohms, it is suitable for voltage regulation and transient suppression applications. The device operates across a wide temperature range of -65°C to 175°C. The FLZ2V7A is packaged in a SOD-80 (DO-213AC, MINI-MELF) surface mount package and supplied on tape and reel. Its specifications make it well-suited for use in automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±4% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 2.6 V |
| Impedance (Max) (Zzt) | 35 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 70 µA @ 1 V |
