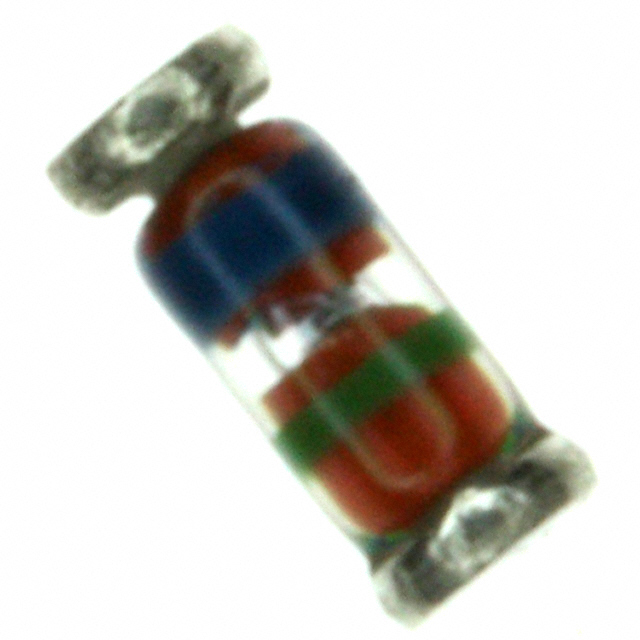

FLZ2V2B
DIODE ZENER 2.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ2B is a Zener diode offering a nominal breakdown voltage of 2.3V with a ±4% tolerance. This component provides 500 mW of power dissipation and is housed in a compact SOD-80 (DO-213AC, MINI-MELF) package suitable for surface mounting. Key electrical characteristics include a low reverse leakage current of 55 µA at 700 mV and a maximum Zener impedance (Zzt) of 35 Ohms. The forward voltage (Vf) is specified at a maximum of 1.2 V at 200 mA. Operating across a wide temperature range from -65°C to 175°C, this device is commonly utilized in voltage regulation and transient suppression circuits within the automotive, industrial, and consumer electronics sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±4% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 2.3 V |
| Impedance (Max) (Zzt) | 35 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 55 µA @ 700 mV |
