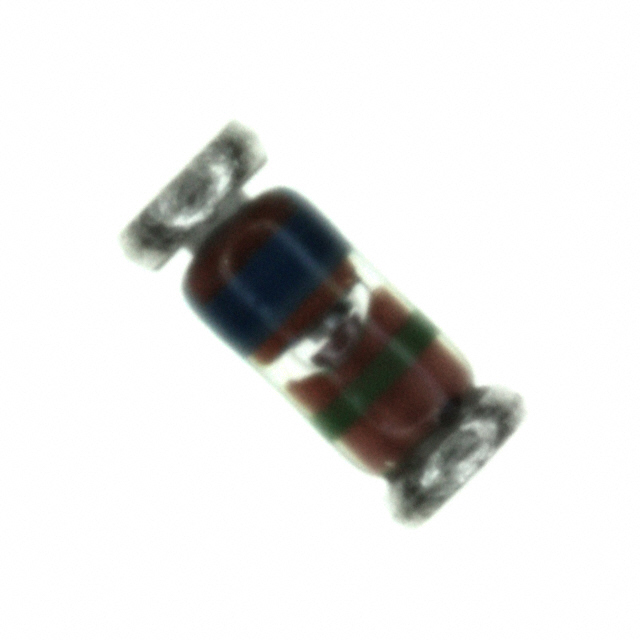

FLZ27VB
DIODE ZENER 25.6V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ27VB is a Zener diode designed for precise voltage regulation. Featuring a nominal Zener voltage of 25.6V with a tight ±3% tolerance, this component is rated for 500mW maximum power dissipation. Its low reverse leakage current of 133 nA at 21V and a Zzt impedance of 38 Ohms make it suitable for applications requiring stable reference voltages. The diode is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, facilitating efficient board layout. Operating across a wide temperature range of -65°C to 175°C, the FLZ27VB finds application in automotive, industrial, and consumer electronics for voltage clamping and regulation circuits.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 25.6 V |
| Impedance (Max) (Zzt) | 38 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 21 V |
