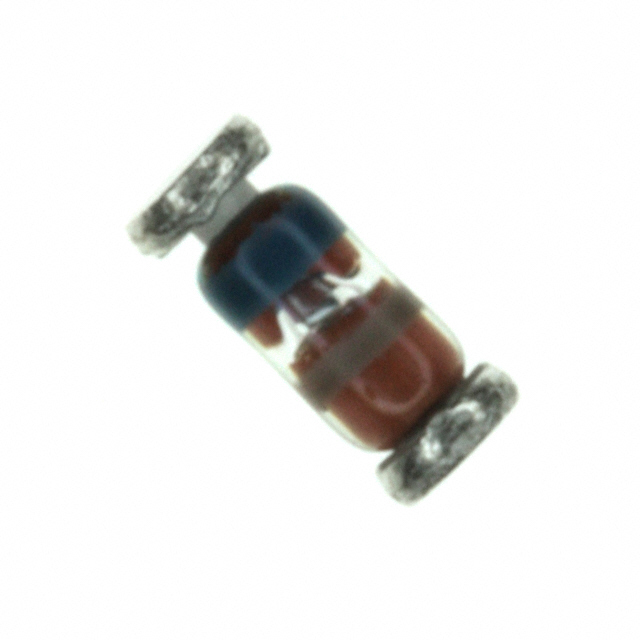

FLZ24VD
DIODE ZENER 24.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ24VD is a Zener diode offering a nominal breakdown voltage of 24.3V with a ±3% tolerance. This component is rated for 500 mW power dissipation and features a low reverse leakage current of 133 nA at 19V. The impedance at the Zener test current (Izt) is a maximum of 29 Ohms. The FLZ24VD is supplied in a compact SOD-80 (DO-213AC, MINI-MELF) surface mount package, designed for efficient thermal management and high-density board layouts. Its operating temperature range spans from -65°C to 175°C, making it suitable for demanding environmental conditions. The forward voltage at 200 mA is a maximum of 1.2V. This device finds application in power management, voltage regulation, and transient suppression circuits within the automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 24.3 V |
| Impedance (Max) (Zzt) | 29 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 19 V |
