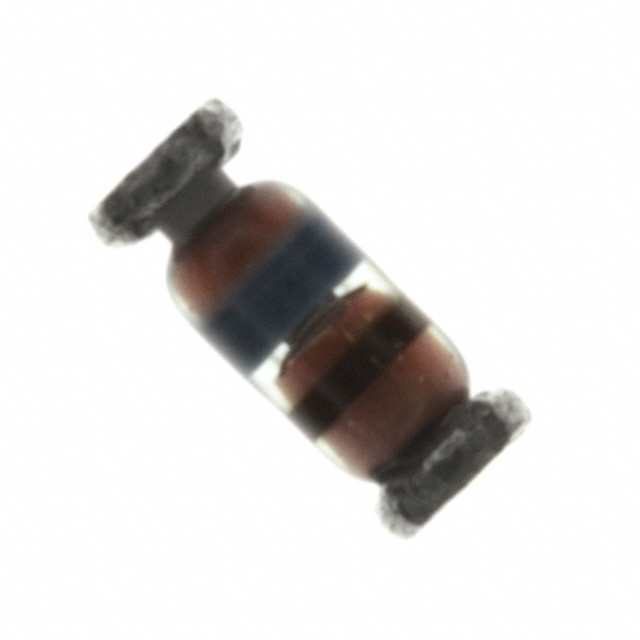

FLZ24VC
DIODE ZENER 23.8V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ24VC is a 500 mW Zener Diode with a nominal Zener voltage of 23.8 V and a ±3% tolerance. This component features a low reverse leakage current of 133 nA at 19 V and a maximum impedance of 29 Ohms. Designed for surface mount applications, it is housed in a compact SOD-80 (DO-213AC, MINI-MELF) package. The FLZ24VC offers a wide operating temperature range from -65°C to 175°C. Its forward voltage is specified at a maximum of 1.2 V at 200 mA. This device is commonly utilized in power supply regulation and voltage clamping circuits across various industrial and automotive applications. The FLZ24VC is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 23.8 V |
| Impedance (Max) (Zzt) | 29 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 19 V |
