FLZ24VA
DIODE ZENER 22.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

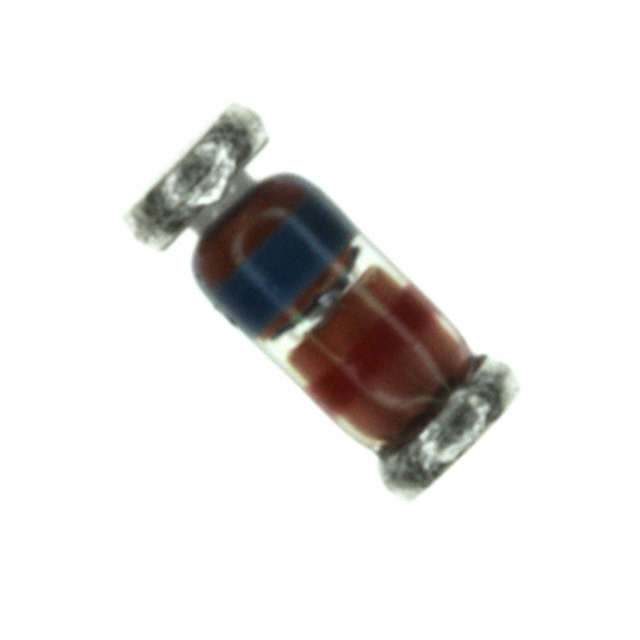

The onsemi FLZ24VA is a Zener diode with a nominal breakdown voltage (Vz) of 22.7 V and a power dissipation rating of 500 mW. This component features a ±3% tolerance for its Zener voltage and a low reverse leakage current of 133 nA at 19 V. Its maximum impedance (Zzt) is 29 Ohms. The FLZ24VA is housed in a SOD-80 package (also known as DO-213AC or MINI-MELF) and is designed for surface mounting. The operating temperature range is from -65°C to 175°C. This device is suitable for various applications, including voltage regulation and surge suppression in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 22.7 V |
| Impedance (Max) (Zzt) | 29 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 19 V |
