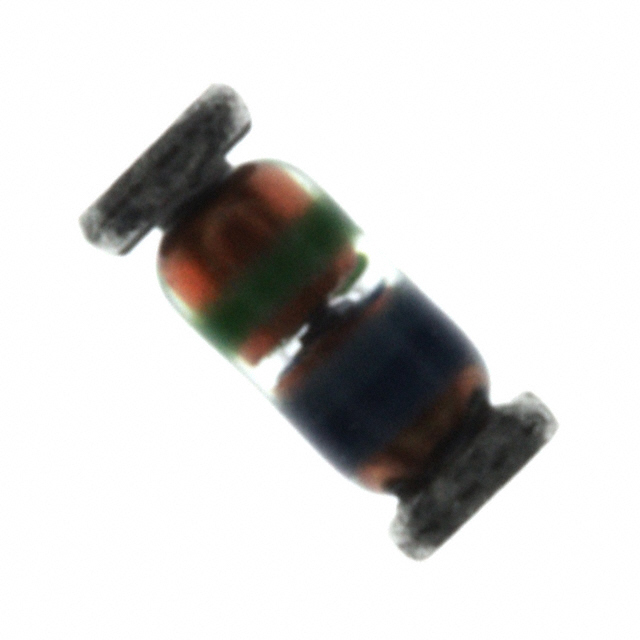

FLZ22VB
DIODE ZENER 21.2V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ22VB is a Zener diode with a nominal voltage of 21.2 V and a power dissipation of 500 mW. This component features a tight tolerance of ±3% and a low reverse leakage current of 133 nA at 17 V. The impedance at the test voltage (Zzt) is 25.6 Ohms. It is supplied in a SOD-80 (DO-213AC, MINI-MELF) surface mount package, delivered on tape and reel. With an extended operating temperature range from -65°C to 175°C, this diode is suitable for applications in automotive, industrial, and telecommunications sectors requiring precise voltage regulation. The forward voltage (Vf) is a maximum of 1.2 V at 200 mA.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 21.2 V |
| Impedance (Max) (Zzt) | 25.6 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 17 V |
