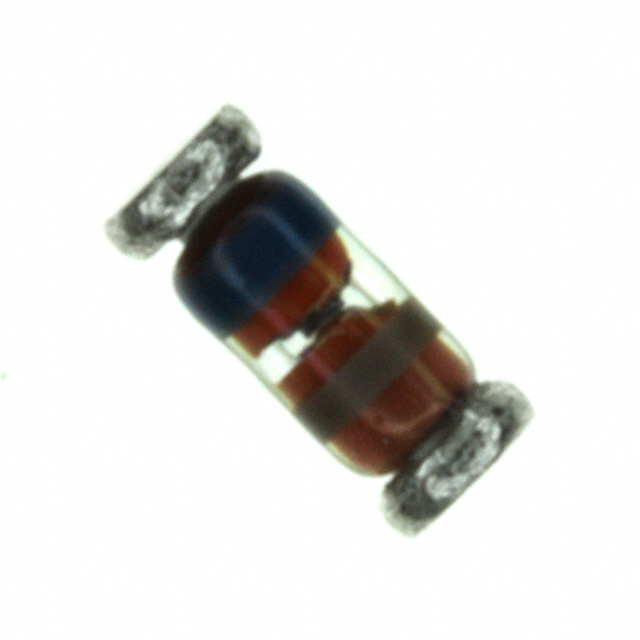

FLZ20VD
DIODE ZENER 20.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ20VD is a Zener Diode offering a nominal breakdown voltage of 20.3V with a tight tolerance of ±3%. This device features a maximum power dissipation of 500 mW and is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, supplied on tape and reel. It exhibits a low reverse leakage current of 133 nA at 15V and a maximum Zener impedance (Zzt) of 23.5 Ohms. The forward voltage (Vf) is specified at 1.2V maximum at 200 mA. This component is suitable for voltage regulation and reference applications across various industries, including automotive, industrial, and consumer electronics. The operating temperature range is -65°C to 175°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 20.3 V |
| Impedance (Max) (Zzt) | 23.5 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 15 V |
