FLZ20VC
DIODE ZENER 19.8V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

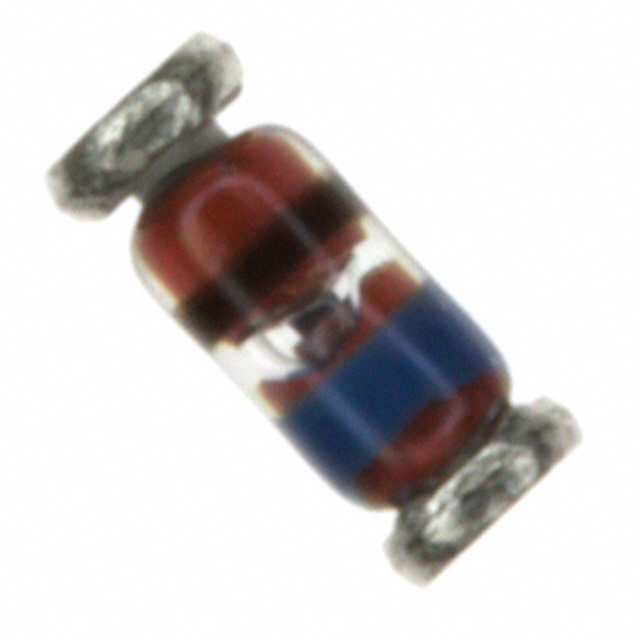

The onsemi FLZ20VC is a Zener Diode with a nominal breakdown voltage of 19.8V and a maximum power dissipation of 500mW. This component features a tight tolerance of ±3% and a low reverse leakage current of 133 nA at 15V. The FLZ20VC is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, suitable for demanding applications requiring efficient space utilization. Its operating temperature range is from -65°C to 175°C, making it resilient in various environmental conditions. The Zener impedance at test current is specified at 23.5 Ohms. This diode is commonly utilized in voltage regulation and transient suppression circuits across industrial, automotive, and consumer electronics sectors. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 19.8 V |
| Impedance (Max) (Zzt) | 23.5 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 15 V |
