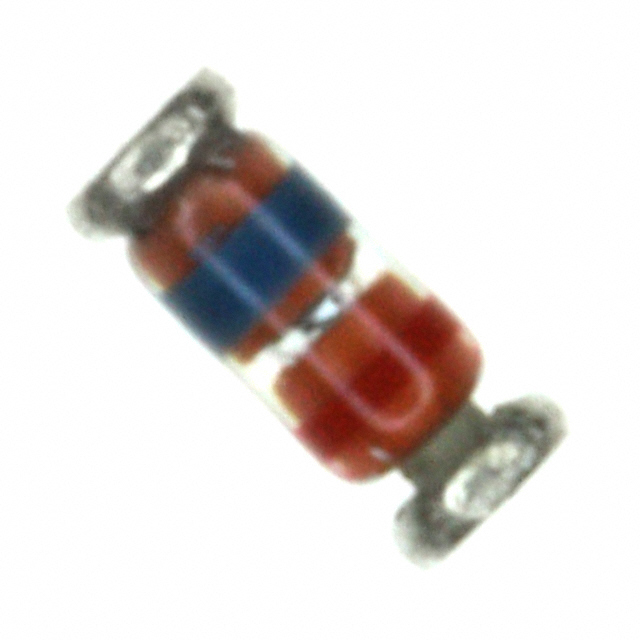

FLZ18VA
DIODE ZENER 16.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ18VA is a Zener diode with a nominal breakdown voltage of 16.7V and a power dissipation of 500mW. This device features a tight tolerance of ±3% and a low reverse leakage current of 133 nA at 13V. The impedance at the test current (Zzt) is specified at 19.4 Ohms.
The FLZ18VA is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface mount package, suitable for high-density applications. It operates across a wide temperature range from -65°C to 175°C. The forward voltage drop is a maximum of 1.2V at 200mA. This component is commonly found in applications requiring precise voltage regulation and transient suppression, including power supplies, consumer electronics, and automotive systems. It is supplied in cut tape packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 16.7 V |
| Impedance (Max) (Zzt) | 19.4 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 13 V |
