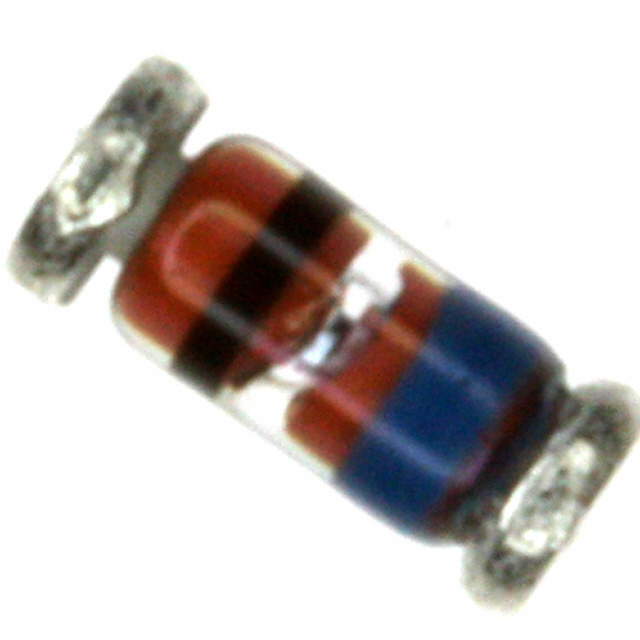

FLZ16VC
DIODE ZENER 16.1V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ16VC is a Zener diode designed for precise voltage regulation and transient suppression applications. This component offers a nominal Zener voltage of 16.1V with a tight tolerance of ±3%. Featuring a maximum power dissipation of 500 mW, it is suitable for demanding thermal environments, operating across a wide temperature range from -65°C to 175°C. The device exhibits a low reverse leakage current of 133 nA at 12V and a characteristic impedance (Zzt) of 15.2 Ohms. Packaged in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount case, the FLZ16VC is ideal for automated assembly processes. Its robust construction and precise electrical characteristics make it a reliable choice for use in automotive, industrial, and consumer electronics where stable voltage references and protection circuits are critical. This component is supplied on tape and reel for efficient manufacturing integration.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 16.1 V |
| Impedance (Max) (Zzt) | 15.2 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 12 V |
