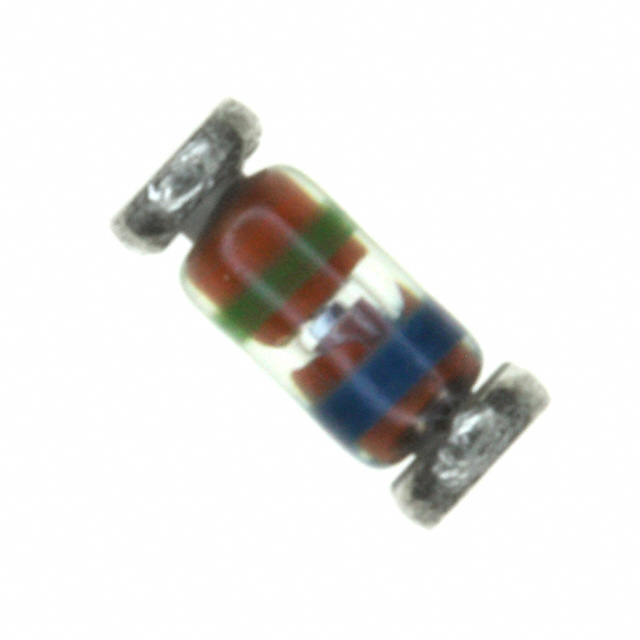

FLZ16VB
DIODE ZENER 15.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ16VB is a Zener Diode offering a nominal breakdown voltage of 15.7V with a tight ±3% tolerance. This component is rated for 500 mW maximum power dissipation and features a low reverse leakage current of 133 nA at 12V. The impedance at the test current (10mA) is a maximum of 15.2 Ohms. Designed for efficient thermal management, it is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, suitable for high-density circuit board layouts. The FLZ16VB operates across a wide temperature range of -65°C to 175°C, making it reliable for demanding applications. Its robust construction and precise voltage regulation characteristics find utility in power supply regulation, voltage clamping, and surge protection circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 15.7 V |
| Impedance (Max) (Zzt) | 15.2 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 12 V |
