FLZ16VA
DIODE ZENER 15.2V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ16VA is a Zener Diode designed for precise voltage regulation. This component features a nominal Zener voltage (Vz) of 15.2 V with a tight tolerance of ±3%. It is rated for a maximum power dissipation of 500 mW and exhibits a low reverse leakage current of 133 nA at 12 V. The device presents a maximum impedance (Zzt) of 15.2 Ohms.

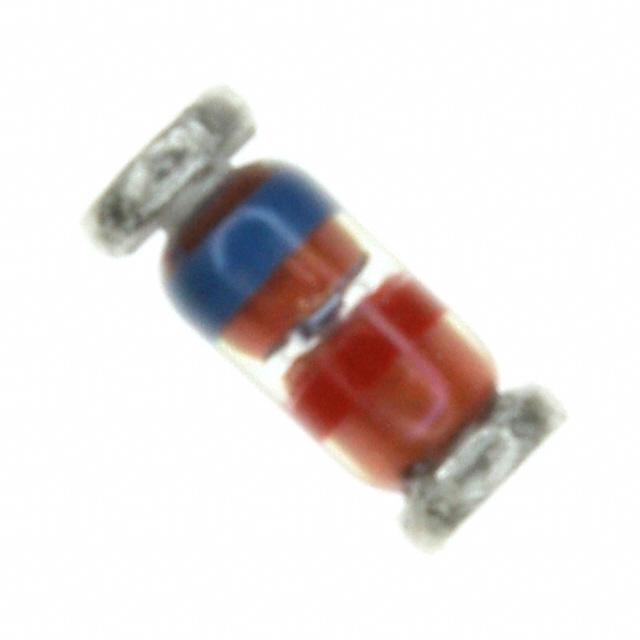

Packaged in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount configuration, the FLZ16VA is supplied on tape and reel for efficient automated assembly. Its operational temperature range spans from -65°C to 175°C, making it suitable for demanding environments. The FLZ16VA is commonly utilized in power management circuits, voltage clamping applications, and general voltage reference functions across various electronic systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 15.2 V |
| Impedance (Max) (Zzt) | 15.2 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 12 V |
