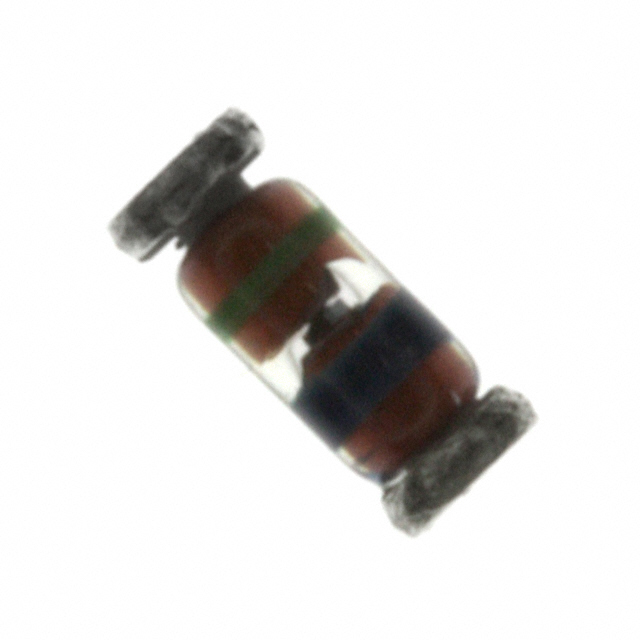

FLZ15VB
DIODE ZENER 14.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ15VB is a 14.3V Zener diode with a power rating of 500mW. This component offers a tight tolerance of ±3% and a Zener impedance of 13.3 Ohms at its nominal voltage. It features a low reverse leakage current of 133 nA at 11V. The device is supplied in a SOD-80 (DO-213AC, MINI-MELF) surface mount package, delivered on tape and reel. Operating across a wide temperature range of -65°C to 175°C, the FLZ15VB is suitable for voltage regulation and transient suppression applications in industrial and automotive sectors. Its forward voltage is a maximum of 1.2V at 200mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 14.3 V |
| Impedance (Max) (Zzt) | 13.3 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 11 V |
