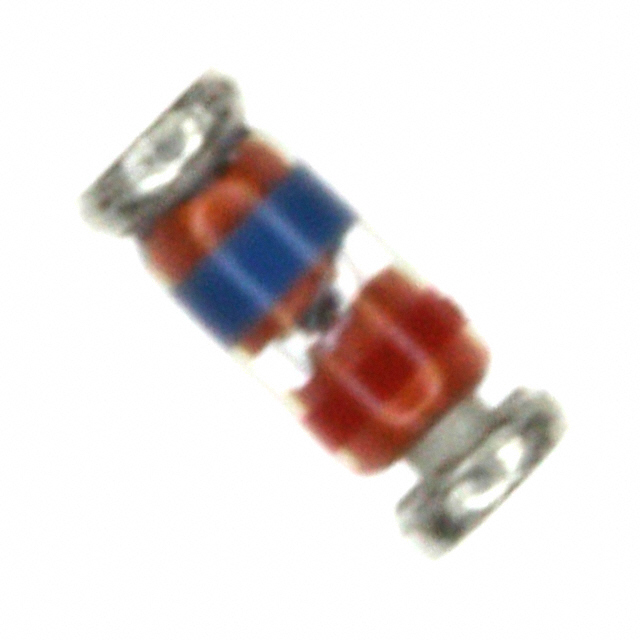

FLZ15VA
DIODE ZENER 13.8V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ15VA is a Zener diode offering a 13.8V nominal breakdown voltage with a ±3% tolerance. This component is designed for surface mounting within a SOD-80 (DO-213AC, MINI-MELF) package. It features a maximum power dissipation of 500 mW and a typical Zener impedance (Zzt) of 13.3 Ohms at its rated voltage. The reverse leakage current is specified at 133 nA at 11V. Operating temperature range is -65°C to 175°C. This device is suitable for voltage regulation and surge suppression applications across various industrial and consumer electronics sectors. Supplied on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 13.8 V |
| Impedance (Max) (Zzt) | 13.3 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 11 V |
