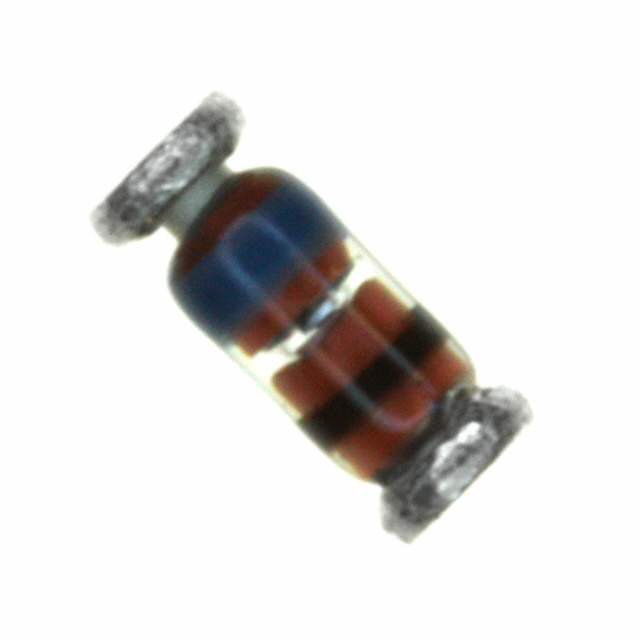

FLZ13VC
DIODE ZENER 13.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ13VC is a 13.3V Zener diode with a 500mW power rating, designed for precision voltage regulation. This device offers a tight tolerance of ±3% and a low reverse leakage current of 133 nA at 10V. With a maximum Zener impedance of 11.4 Ohms, it provides stable performance in demanding applications. The FLZ13VC features a compact SOD-80 (DO-213AC, MINI-MELF) surface mount package, suitable for space-constrained designs. Operating across a wide temperature range of -65°C to 175°C, this component finds application in power management circuits, voltage clamping, and general-purpose voltage reference functions across various industrial and consumer electronics sectors. The forward voltage is rated at a maximum of 1.2V at 200mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 13.3 V |
| Impedance (Max) (Zzt) | 11.4 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 10 V |
