FLZ13VB
DIODE ZENER 12.9V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

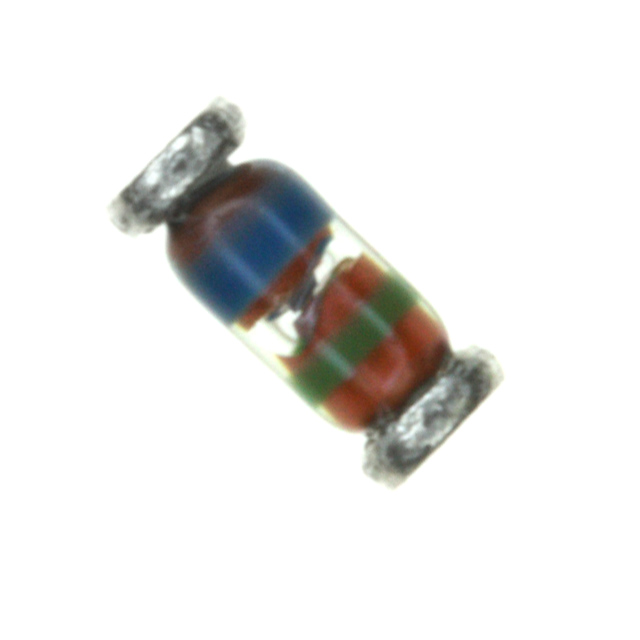

The onsemi FLZ13VB is a Zener diode featuring a nominal voltage of 12.9V with a ±3% tolerance. This component is rated for a maximum power dissipation of 500 mW and has a low reverse leakage current of 133 nA at 10V. Its impedance (Zzt) is a maximum of 11.4 Ohms. The FLZ13VB is housed in a compact SOD-80 package (DO-213AC, MINI-MELF) suitable for surface mounting. Operating across a wide temperature range of -65°C to 175°C, it finds application in power management and voltage regulation circuits within the automotive and industrial sectors. The device is supplied in Digi-Reel® packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Digi-Reel®Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Digi-Reel® |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 12.9 V |
| Impedance (Max) (Zzt) | 11.4 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 10 V |
