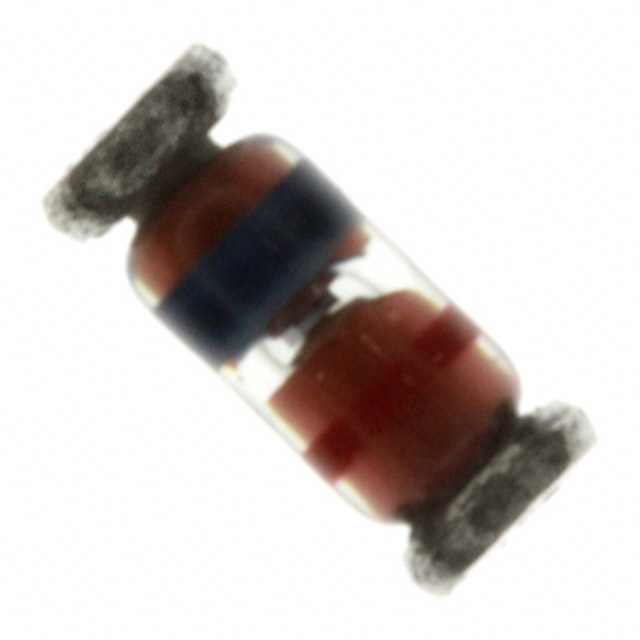

FLZ13VA
DIODE ZENER 12.5V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ13VA is a Zener diode designed for precise voltage regulation. Featuring a nominal Zener voltage of 12.5 V with a tight tolerance of ±3%, this component offers reliable performance for critical applications. Its 500 mW power dissipation capability, coupled with a low reverse leakage current of 133 nA at 10 V, makes it suitable for various power management and signal conditioning tasks. The maximum impedance at the Zener test current (Zzt) is 11.4 Ohms.
Constructed for surface mounting within a compact SOD-80 (DO-213AC, MINI-MELF) package, the FLZ13VA is supplied in Tape & Reel packaging for efficient automated assembly. Its operating temperature range of -65°C to 175°C ensures robustness across demanding environmental conditions. This component finds application in automotive, industrial, and consumer electronics sectors where stable voltage references are essential. The forward voltage drop (Vf) is a maximum of 1.2 V at 200 mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 12.5 V |
| Impedance (Max) (Zzt) | 11.4 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 10 V |
