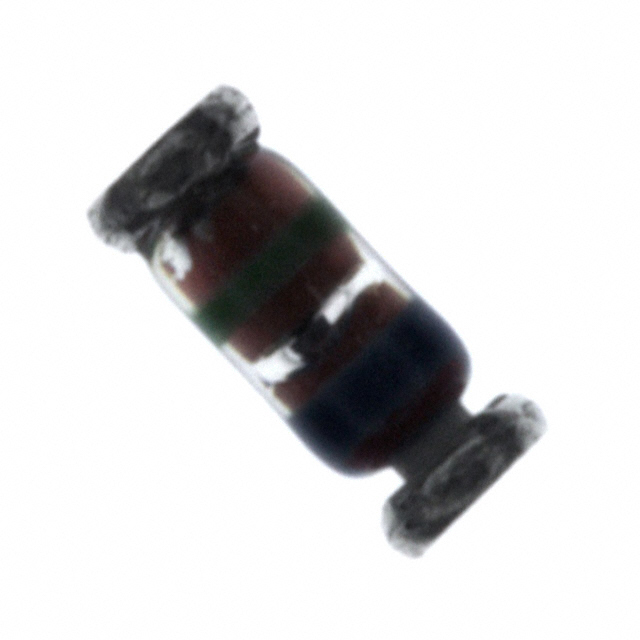

FLZ12VB
DIODE ZENER 11.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ12VB is a Zener diode featuring a nominal Zener voltage of 11.7V and a maximum power dissipation of 500mW. This component offers a tight tolerance of ±3% and a low reverse leakage current of 133 nA at 9V. Its ZzT impedance is specified at 9.5 Ohms. The FLZ12VB is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, ideal for space-constrained applications. It operates across a wide temperature range from -65°C to 175°C. This diode is commonly employed in voltage regulation and transient suppression circuits within the automotive and industrial electronics sectors. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 11.7 V |
| Impedance (Max) (Zzt) | 9.5 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 9 V |
