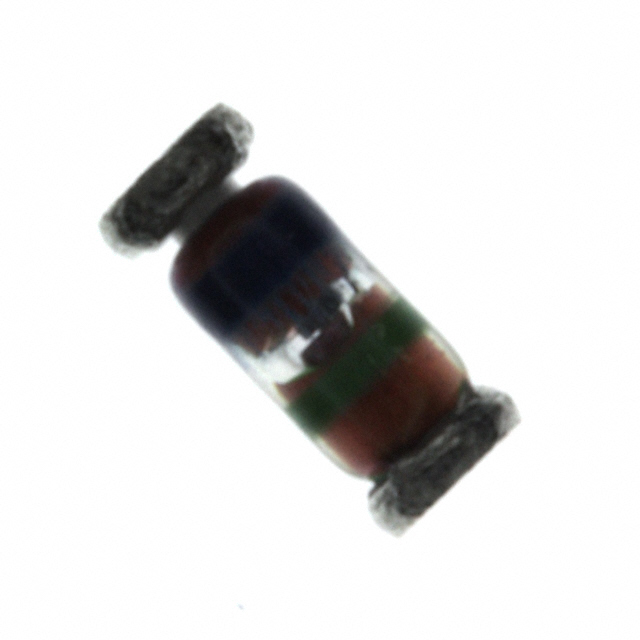

FLZ11VB
DIODE ZENER 10.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ11VB is a 500 mW Zener diode featuring a ±3% tolerance and a nominal Zener voltage of 10.7 V. This component is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface mount package, supplied on tape and reel. It exhibits a low reverse leakage of 133 nA at 8 V and a maximum Zener impedance (Zzt) of 8.5 Ohms. The FLZ11VB operates across a wide temperature range of -65°C to 175°C. Its specifications make it suitable for voltage regulation and transient suppression applications in industries such as automotive, industrial control, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 10.7 V |
| Impedance (Max) (Zzt) | 8.5 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 133 nA @ 8 V |
