FLZ10VC
DIODE ZENER 10.1V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

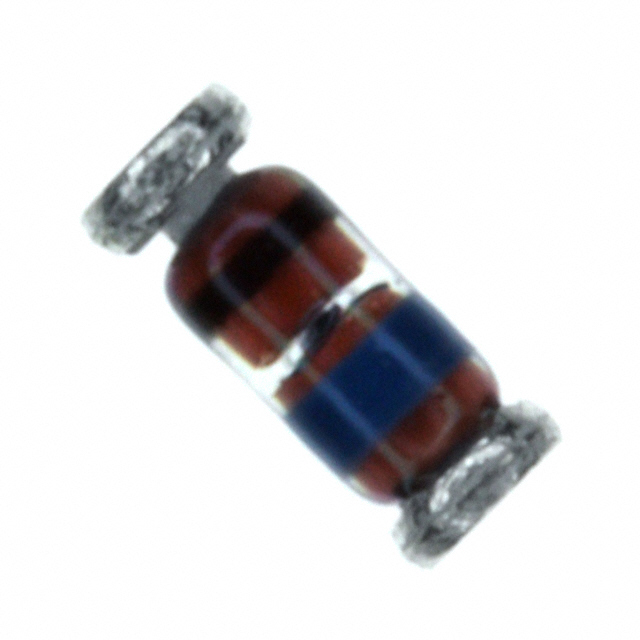

onsemi FLZ10VC is a Zener Diode designed for precision voltage regulation. This component offers a nominal Zener voltage of 10.1V with a tight tolerance of ±3%. It is rated for a maximum power dissipation of 500 mW and features a low reverse leakage current of 110 nA at 7V. The FLZ10VC has a maximum forward voltage of 1.2V at 200 mA and a Zener impedance of 6.6 Ohms at 10mA. Packaged in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount configuration, it is suitable for automated assembly. Operating across a wide temperature range of -65°C to 175°C, this device finds application in power management, consumer electronics, and automotive systems requiring stable voltage references. The component is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 10.1 V |
| Impedance (Max) (Zzt) | 6.6 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 110 nA @ 7 V |
