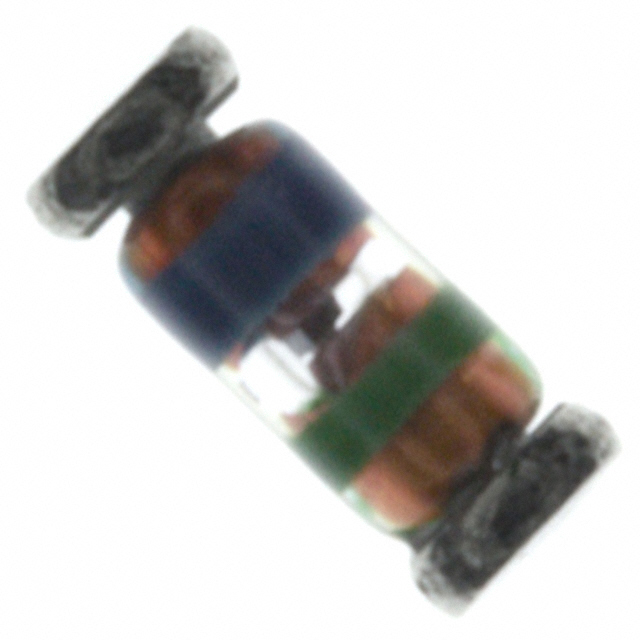

FLZ10VB
DIODE ZENER 9.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ10VB is a 9.7V Zener diode with a power dissipation of 500mW. This component features a tight tolerance of ±3% and a low reverse leakage current of 110 nA at 7V. With a Zener impedance (Zzt) of 6.6 Ohms, it is suitable for voltage regulation and transient suppression applications. The device operates across a wide temperature range of -65°C to 175°C. It is supplied in a SOD-80 (DO-213AC, MINI-MELF) surface-mount package, making it ideal for compact designs in automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 9.7 V |
| Impedance (Max) (Zzt) | 6.6 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 110 nA @ 7 V |
