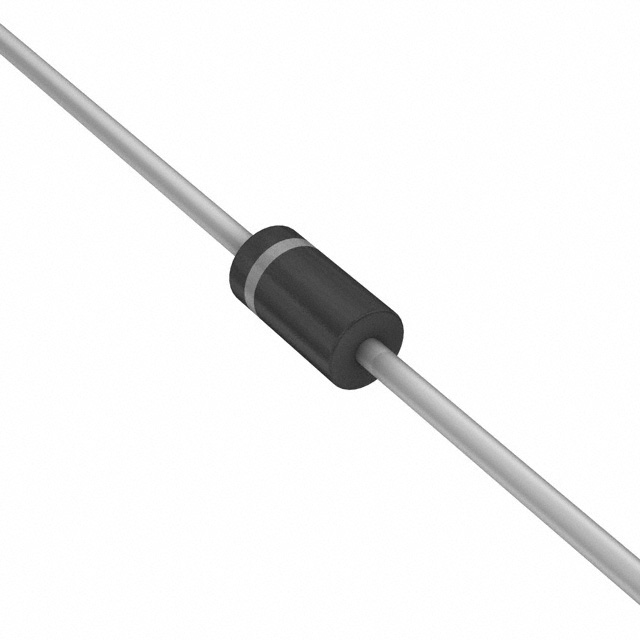

3EZ16D5RLG
DIODE ZENER 16V 3W AXIALManufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi 3EZ16D5RLG is a 3W axial leaded Zener diode with a nominal Zener voltage of 16V and a ±5% tolerance. This component features a low reverse leakage current of 500 nA at 12.2V and a maximum Zener impedance (Zzt) of 5.5 Ohms. It is rated for a maximum power dissipation of 3W and operates across a wide temperature range of -65°C to 200°C. The diode's forward voltage (Vf) is a maximum of 1.5V at 200mA. Packaged in a standard DO-204AL, DO-41, Axial case, this device is suitable for through-hole mounting and is supplied in Tape & Reel packaging. This Zener diode is utilized in various industrial applications, including power supply regulation and voltage clamping circuits.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 200°C |
| Voltage - Zener (Nom) (Vz) | 16 V |
| Impedance (Max) (Zzt) | 5.5 Ohms |
| Supplier Device Package | Axial |
| Power - Max | 3 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 12.2 V |
