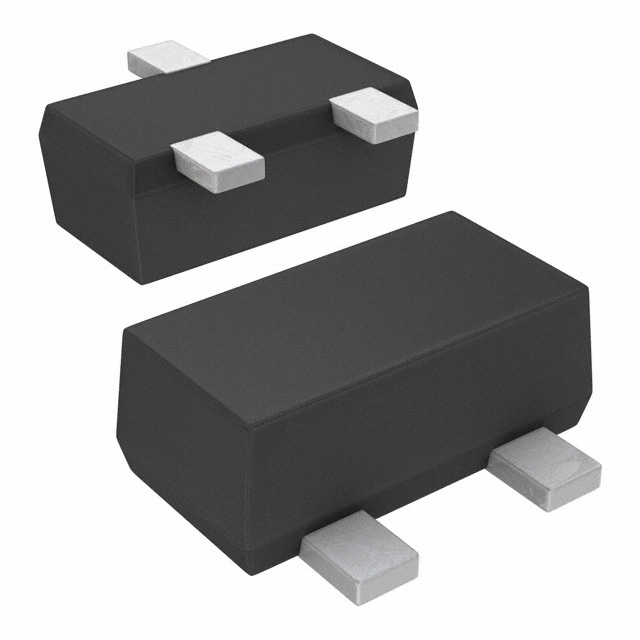

FJY3003R
TRANS PREBIAS NPN 50V SC89-3Manufacturer: onsemi
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
The onsemi FJY3003R is an NPN pre-biased bipolar transistor designed for surface mount applications. This component features a collector-emitter breakdown voltage of 50V and a maximum collector current of 100mA, with a transition frequency of 250MHz. It is supplied in an SC-89-3 package, suitable for high-density board designs. The internal base biasing includes a 22 kOhm resistor (R1) and a 22 kOhm emitter base resistor (R2), simplifying circuit design by eliminating the need for external biasing resistors. With a maximum power dissipation of 200mW, the FJY3003R is utilized in various industrial and consumer electronics applications requiring compact and efficient switching or amplification. The DC current gain (hFE) is a minimum of 56 at 5mA collector current and 5V collector-emitter voltage.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 56 @ 5mA, 5V |
| Supplier Device Package | SC-89-3 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 200 mW |
| Frequency - Transition | 250 MHz |
| Resistor - Base (R1) | 22 kOhms |
| Resistor - Emitter Base (R2) | 22 kOhms |
