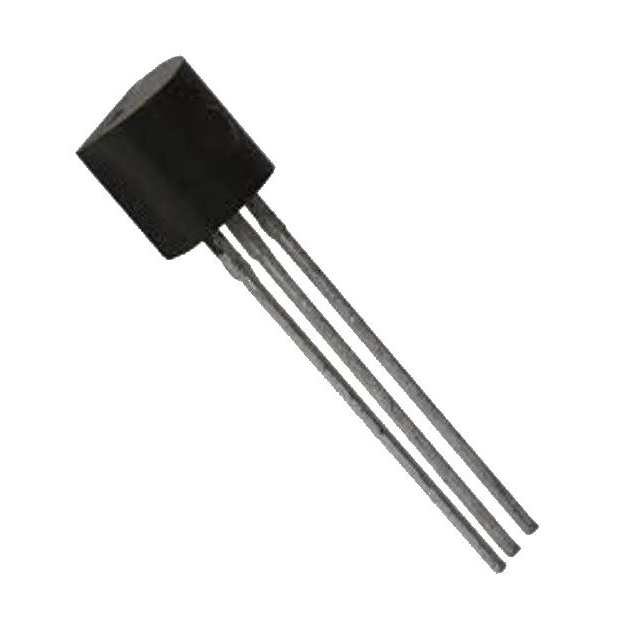

2SC3917-AC
SMALL SIGNAL BIPOLAR TRANSTR NPNManufacturer: onsemi
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 500 mA 250 MHz 300 mW Through Hole 3-SPA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3-SSIP |
| Mounting Type | Through Hole |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 2mA, 40mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 20mA, 5V |
| Supplier Device Package | 3-SPA |
| Grade | - |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 300 mW |
| Frequency - Transition | 250 MHz |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 4.7 kOhms |
| Qualification | - |
