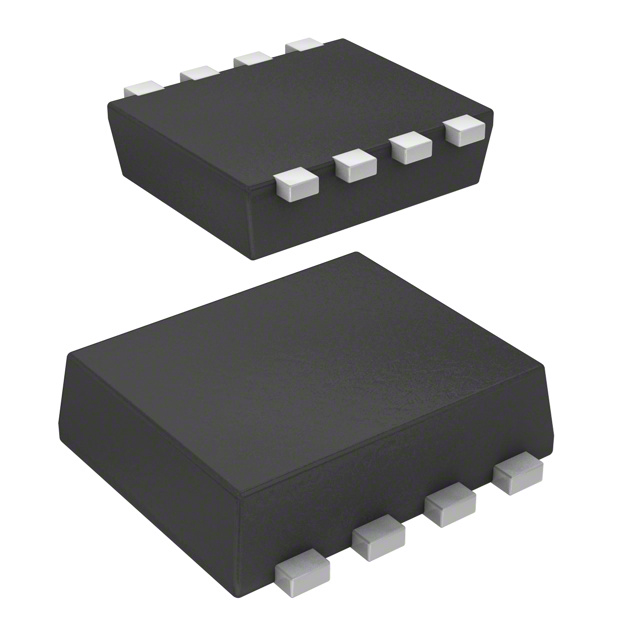

The onsemi TIG058E8-TL-H is a high-performance IGBT component designed for demanding applications. This surface mount device features a 400V collector-emitter breakdown voltage and a pulsed collector current capability of 150A. The TIG058E8-TL-H offers a low Vce(on) of 5.6V at 4V gate drive and 100A collector current, ensuring efficient power delivery. Operating at a maximum junction temperature of 150°C, it is housed in an 8-SMD, Flat Leads package, supplied in Tape & Reel (TR). This component is suitable for use in industrial power supplies, motor control, and automotive systems, where robust switching performance and thermal management are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 5.6V @ 4V, 100A |
| Supplier Device Package | 8-ECH |
| IGBT Type | - |
| Td (on/off) @ 25°C | - |
| Switching Energy | - |
| Test Condition | - |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Current - Collector Pulsed (Icm) | 150 A |
