NGTB25N120FL3WG
IGBT TRENCH FS 1200V 100A TO247Manufacturer: onsemi
Categories: Single IGBTs
Quality Control: Learn More

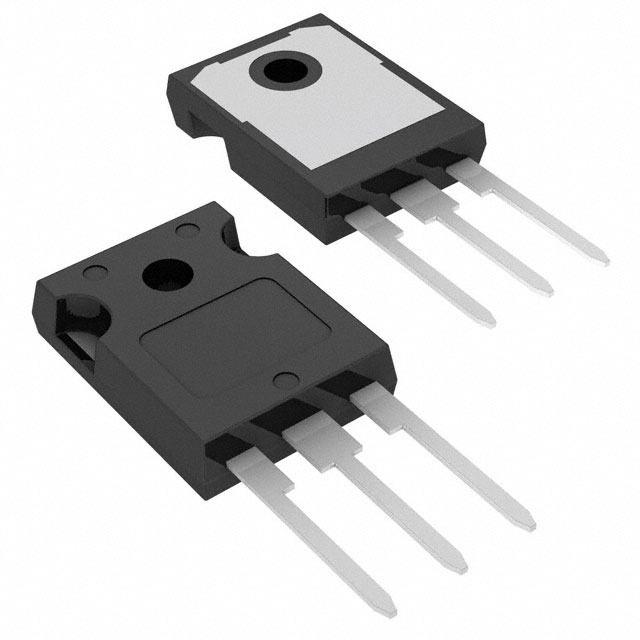

IGBT Trench Field Stop 1200 V 100 A 349 W Through Hole TO-247-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 114 ns |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 25A |
| Supplier Device Package | TO-247-3 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 15ns/109ns |
| Switching Energy | 1mJ (on), 700µJ (off) |
| Test Condition | 600V, 25A, 10Ohm, 15V |
| Gate Charge | 136 nC |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 100 A |
| Power - Max | 349 W |
