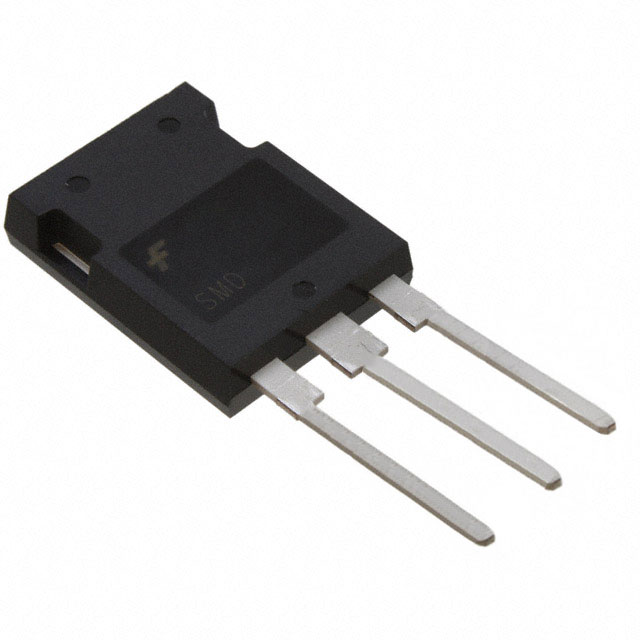

FGY75N60SMD
IGBT 600V 150A 750W POWER-247Manufacturer: onsemi
Categories: Single IGBTs
Quality Control: Learn More
IGBT Field Stop 600 V 150 A 750 W Through Hole PowerTO-247-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 Variant |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 55 ns |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 75A |
| Supplier Device Package | PowerTO-247-3 |
| IGBT Type | Field Stop |
| Td (on/off) @ 25°C | 24ns/136ns |
| Switching Energy | 2.3mJ (on), 770µJ (off) |
| Test Condition | 400V, 75A, 3Ohm, 15V |
| Gate Charge | 248 nC |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 225 A |
| Power - Max | 750 W |
Request a Quote
