FGY160T65SPD-F085
650V FS GEN3 TRENCH IGBTManufacturer: onsemi
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 650 V 240 A 882 W Through Hole TO-247-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 132 ns |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 160A |
| Supplier Device Package | TO-247-3 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 53ns/98ns |
| Switching Energy | 12.4mJ (on), 5.7mJ (off) |
| Test Condition | 400V, 160A, 15V |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 240 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 480 A |
| Power - Max | 882 W |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy
FGD3245G2-F085
IGBT 450V 23A TO252AA
FGH75T65SQDT-F155
IGBT TRENCH FS 650V 150A TO247-3

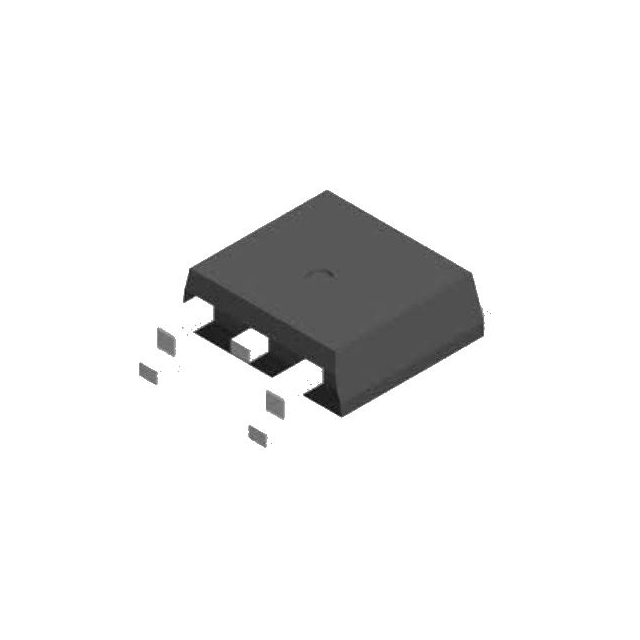

NGB8206ANSL3G
