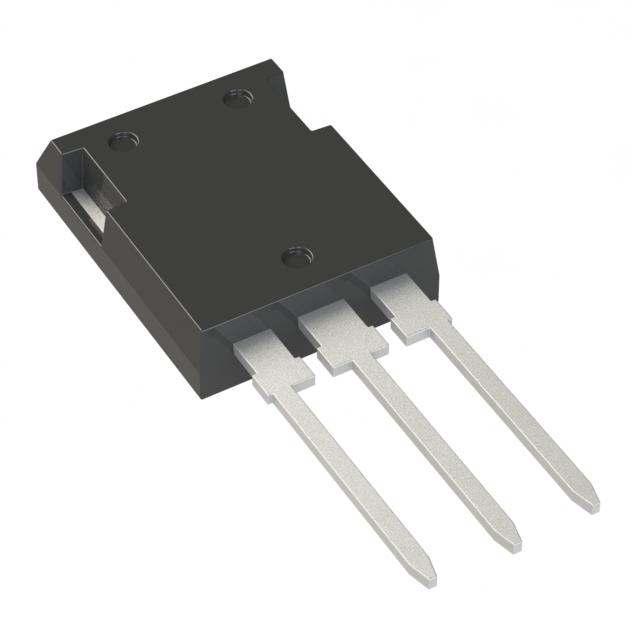

FGY100T120RWD
IGBT FIELD STOP 1200V 200A TO247Manufacturer: onsemi
Categories: Single IGBTs
Quality Control: Learn More
IGBT Field Stop 1200 V 200 A 1495 W Through Hole TO-247-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 Variant |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 347 ns |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 100A |
| Supplier Device Package | TO-247-3 |
| IGBT Type | Field Stop |
| Td (on/off) @ 25°C | 80ns/364ns |
| Switching Energy | 8.13mJ (on), 7.05mJ (off) |
| Test Condition | 600V, 100A, 4.7Ohm, 15V |
| Gate Charge | 427 nC |
| Current - Collector (Ic) (Max) | 200 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 300 A |
| Power - Max | 1495 W |
