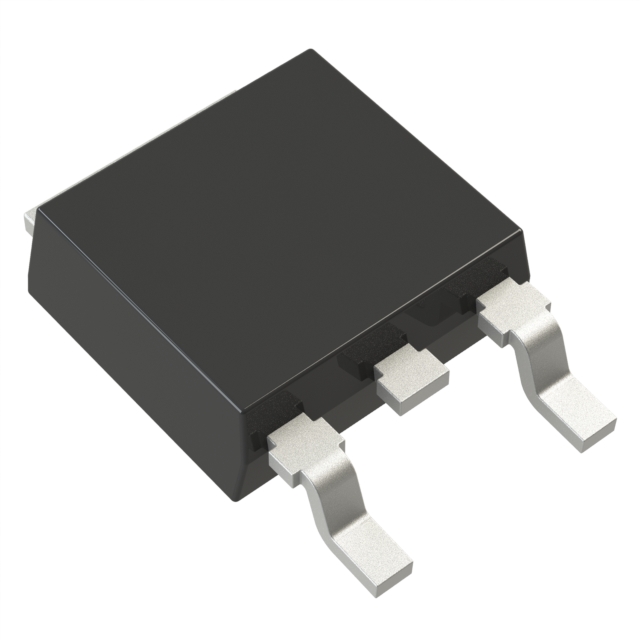

FGI3040G2-F085C
ECOSPARK2 IGN-IGBT TO262Manufacturer: onsemi
Categories: Single IGBTs
Quality Control: Learn More
IGBT 400 V 41 A 150 W Surface Mount I2PAK (TO-262)
Additional Information
Series: EcoSPARK®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Logic |
| Vce(on) (Max) @ Vge, Ic | 1.25V @ 4V, 6A |
| Supplier Device Package | I2PAK (TO-262) |
| IGBT Type | - |
| Td (on/off) @ 25°C | -/4.8µs |
| Switching Energy | - |
| Test Condition | 300V, 6.5A, 1kOhm, 5V |
| Gate Charge | 21 nC |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 41 A |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Power - Max | 150 W |
| Qualification | AEC-Q101 |
