FGH30N6S2D
IGBT 600V 45A 167W TO247Manufacturer: onsemi
Categories: Single IGBTs
Quality Control: Learn More

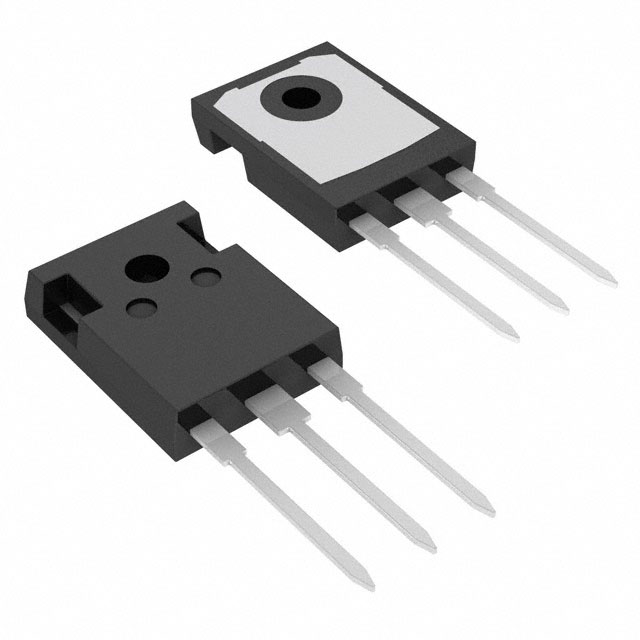

The onsemi FGH30N6S2D is a 600V, 45A Insulated Gate Bipolar Transistor (IGBT) housed in a TO-247-3 package. This through-hole component offers a maximum collector current of 45A and a pulsed collector current of 108A. Featuring a low saturation voltage of 2.5V at 12A and 15V Vge, it is designed for efficient power switching. The device exhibits typical turn-on delay of 6ns and turn-off delay of 40ns at 25°C. With a maximum power dissipation of 167W and a gate charge of 23nC, the FGH30N6S2D is suitable for applications in industrial motor drives, uninterruptible power supplies (UPS), and power factor correction circuits. The operating temperature range is -55°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 46 ns |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 12A |
| Supplier Device Package | TO-247-3 |
| IGBT Type | - |
| Td (on/off) @ 25°C | 6ns/40ns |
| Switching Energy | 55µJ (on), 100µJ (off) |
| Test Condition | 390V, 12A, 10Ohm, 15V |
| Gate Charge | 23 nC |
| Current - Collector (Ic) (Max) | 45 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 108 A |
| Power - Max | 167 W |
