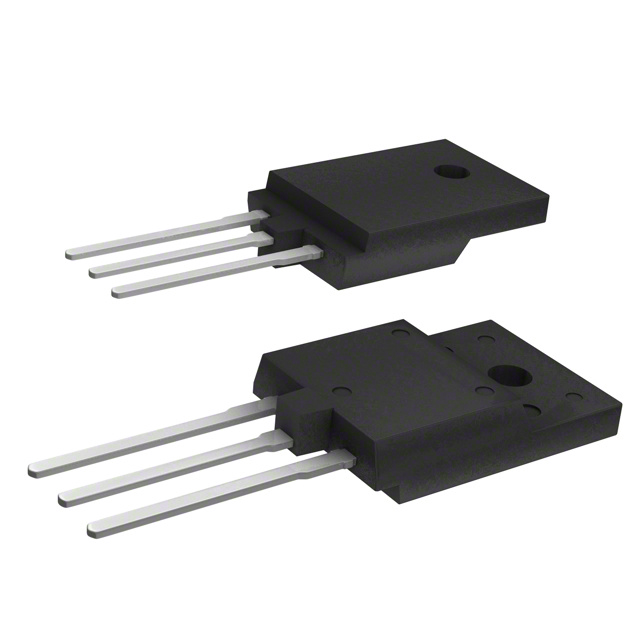

FGAF40S65AQ
IGBT TRENCH FS 650V 80A TO3PF-3Manufacturer: onsemi
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 650 V 80 A 94 W Through Hole TO-3PF-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 274 ns |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 40A |
| Supplier Device Package | TO-3PF-3 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 17.8ns/81.6ns |
| Switching Energy | 132µJ (on), 62µJ (off) |
| Test Condition | 400V, 10A, 6Ohm, 15V |
| Gate Charge | 75 nC |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 160 A |
| Power - Max | 94 W |
