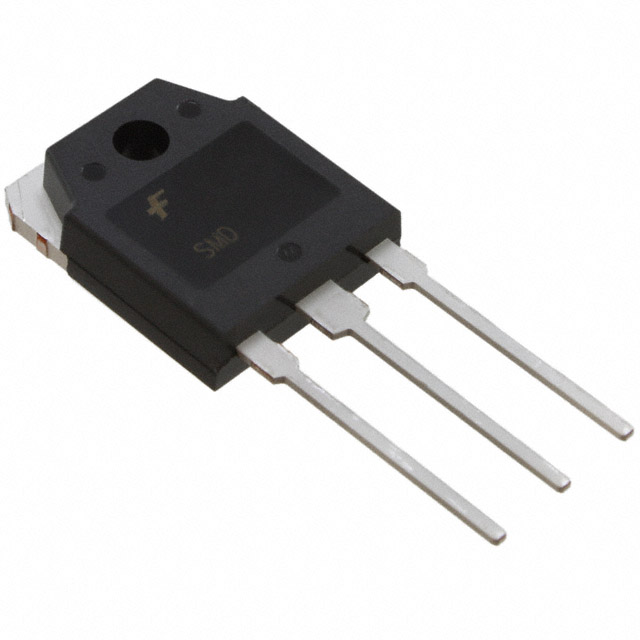

FGA60N65SMD
IGBT FIELD STOP 650V 120A TO3PManufacturer: onsemi
Categories: Single IGBTs
Quality Control: Learn More
IGBT Field Stop 650 V 120 A 600 W Through Hole TO-3P
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 47 ns |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 60A |
| Supplier Device Package | TO-3P |
| IGBT Type | Field Stop |
| Td (on/off) @ 25°C | 18ns/104ns |
| Switching Energy | 1.54mJ (on), 450µJ (off) |
| Test Condition | 400V, 60A, 3Ohm, 15V |
| Gate Charge | 189 nC |
| Current - Collector (Ic) (Max) | 120 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 180 A |
| Power - Max | 600 W |
Request a Quote
